STAK 200 Field Attachable Industrial Rectangular Cable Connector
The STAK 200 (Part No. 932 037-106) is a premium field-attachable female rectangular cable connector designed for industrial power supply and control applications. Featuring a 2+PE pole configuration, it supports up to 250 V AC/DC and 16 A AC / 10 A DC, making it ideal for robust mains electrical connections.
Technical Specifications
| Product Name |
Field-Attachable Industrial Rectangular Female Cable Socket |
| Part Model |
STAK 200 grey |
| Series / Style |
Standard ST Series Industrial Connector |
| Poles / Pin Count |
2 + PE (2 Poles + Protective Earth Ground) |
| Rated Voltage |
250 V AC/DC |
| Rated Current |
16 A AC / 10 A DC |
| Operating Temperature |
-30 °C to +90 °C |
| Termination Type |
Screw Terminals |
Product Features
Standard STAK 200 Model with Perfect Mating Compatibility
- Fixed part No.: 932 037-106, exclusive STAK 200 grey female rectangular cable socket
- Original industrial structural design with precise dimension calibration
- 100% seamless matching with STAS 200 male plugs and STAS 2 panel mount sockets
- Standard quick-mount field connector interface reduces equipment maintenance downtime
- Ideal for global distributors, electrical control panel builders, and OEM machinery manufacturers
High Electrical Capacity for Stable Power & Signal Transmission
- 2 + PE contact layout (2 power poles + protective earth grounding) for secure circuits
- Supports high working rating up to 250V AC/DC
- Continuous current delivery of 16A AC / 10A DC
- Ideal for industrial actuators, solenoid valves, small motors, and field automation equipment
- Excellent conductivity and low contact resistance for reliable operations
Field-Attachable Screw Termination with Integrated PG7 Strain Relief
- Robust screw terminals support conductor cross-sections from 0.25 mm² to 1.5 mm²
- Built-in PG 7 cable gland clamping system (cable OD: 4.0 mm to 6.5 mm)
- Exceptional cable retention and strain relief prevents wire pull-out and vibration loosening
- Simple detachable structure allows rapid disassembly for wiring inspection and maintenance
Durable Engineering Polyamide Body with IP54 Protection
- High-grade Polyamide (PA) housing in standard industrial grey
- High mechanical strength and impact resistance
- IP54 ingress protection against dust and multi-directional water splashes
- Wide operating temperature range: -30 °C to +90 °C
- Compatible with STASI 2 metal safety locking bracket for vibration environments
Cost-Effective Consumable Component with Mass Industry Compatibility
- Essential field cabling connector with low replacement expenses
- Adaptable to building control systems, factory automation, HVAC controls, and power cabinet wiring
- No complex custom tools required for field assembly
- Reliable batch manufacturing quality with stable stock availability

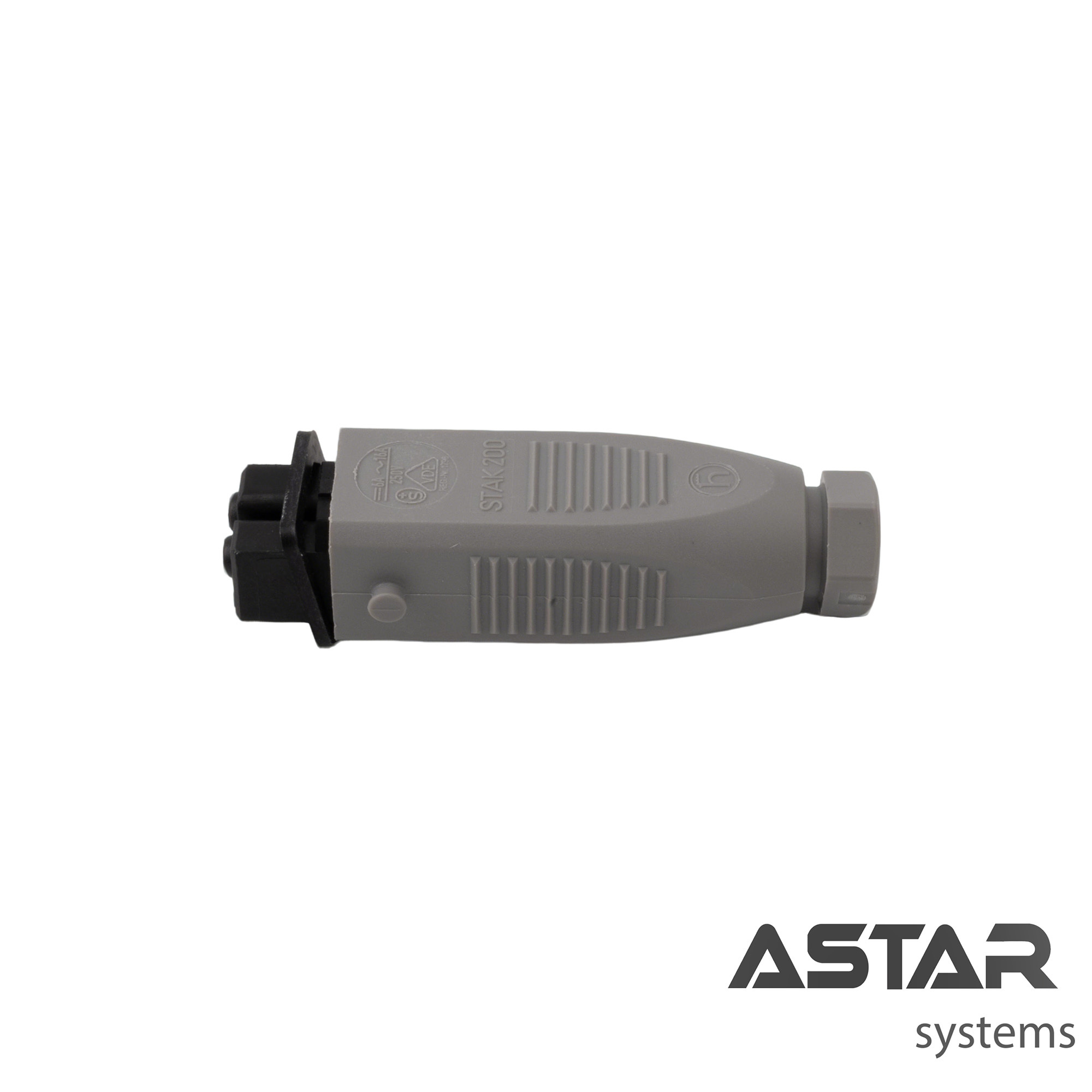

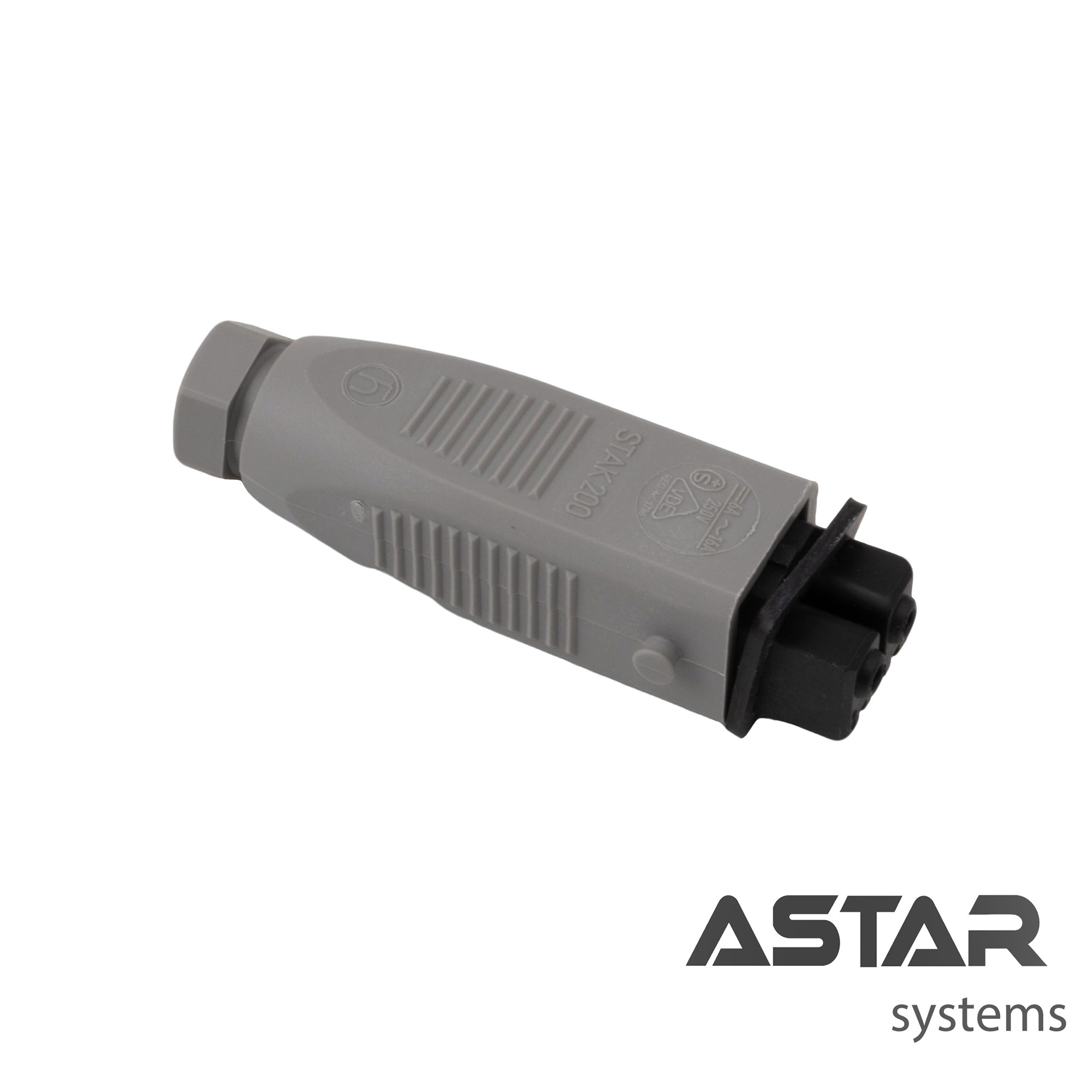

Product Images
